IDOLmain UHF-628 Auto Sound Cut Off When Dropping Dual Wireless Microphone System <font color=" red"><b>Discontinued</b></font>

IDOLmain UHF-628 Auto Sound Cut Off When Dropping Dual Wireless Microphone System Discontinued

Item# UHF628
Availability: Usually ships the same business day
This item is currently out of stock!

Product Description

UHF-628 is built with latest technology and has all outstanding features from all high-end microphone brands on the market. With two handheld mics, each on their own independent UHF channel, the IDOLpro UHF-628 gives you maximized vocal options without the fear of frequency interference which is ideal for the karaoke professional, vocalists, home entertainment enthusiasts.

Features :

  • Dual wireless microphones with one receiver.
  • Long battery life with booster battery function, can keep up 6-10 hours and will not affect the stability even when battery is low.
  • Special circuit designed to cut of sound completely when dropping to avoid loud feedback from speakers.
  • Approximate working distance is 300 ft.
  • Energy saving with ECO-MODE
  • Automatic transferring to energy saving mode after 5 minute unused.
  • Automatic shutting down after 30 minutes unused to avoid over heat and save energy.
  • Super strong dynamic tracing ability providing a perfect sound regardless far or near distance.
  • Anti-interference ability with new digital pilot technology to avoid string frequency when many microphones being used.
  • Easy install, IR auto frequency pick up, and high receiving sensitivity to provide a perfect sound for any KTV bars,karaoke rooms, classrooms, concerts, meeting rooms and etc.

General Specification :

  • XLR and " output connectors
  • Microprocessor-controlled internal antenna diversity
  • Adjustable channel number : 100x2
  • Oscillation mode: Phase-locked loop (PLL) frequency synthesis
  • Frequency stability: Plus or minus 10 PPM
  • Reception mode: Secondary super heterodyne frequency conversion
  • Pilot way: Simulation of pilot
  • Receiving sensitivity: -95DBM
  • Frequency ring tone: 40-18000 hz
  • Adjustable output level
  • LCD display with detailed RF and audio metering
  • Harmonic distortion: 0.5% or less
  • Signal to noise ratio:110 db or higher
  • Audio Output: Equilibrium output and mixed output
  • Transmission power: 3-30mw
  • Modulation mode: Frequency modulation (FM)
  • Battery: AA battery
  • Power supply : 100-240V
  • Power consumption: 10W or less

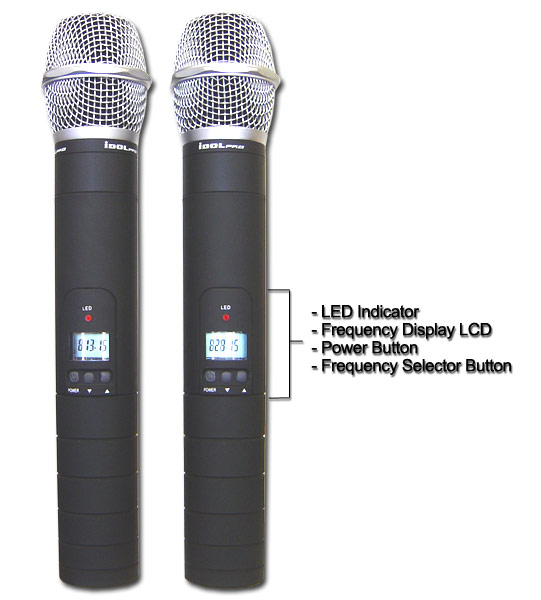

Handheld LCD Display:

  • Low Transmission Power Status (5mW)
  • High Transmission Power Status (10mw)
  • Frequency Display (MHz units)
  • Battery Status Display
  • LCD Display Display Frequency Battery Status
  • IR Port
  • Battery Tray
  • Transmission Power level and frequency setting LCD panel instructions
  • Currently Using Power
  • Currently Using Frequency
  • Battery Status Display
  • Antenna
  • LED indicator LED indicator display work on or off, low voltage

The whole system specification :

    Channel: 2x100 channels
    Band width: <200KHz
    Frequency response: 60Hz -15KHz
    Dynamic range: >100dB
    T.H.D <0.5%
    S/N ratio: >90 dB
    Valid distance: >50 m
    Rack-Mountable (brackets included)

Transmitter :

    Transmission power: 10 mW/ 5mW
    Oscillation mode: PLL
    Image control: >50 dB
    Adjust frequency deviation: <75 KHz
    Channel switch mode: coding switch
    Power: DC 2.4 -4.8 V

Receiver :

    Sensitivity: 2. 0uV
    Oscillation mode: PLL
    S/N ration: >90 dB
    Distortion: <0.5%
    Output: 2x balance and 1x6.35 mm mixed
    Power AC 100-240 V
    DC 12-14 V

Package Includes :

    UHF-628 receiver
    Wireless microphone x 2
    Power adapter
    Audio Cable
    User guide
    2 Antennas
    AA Battery x 4
