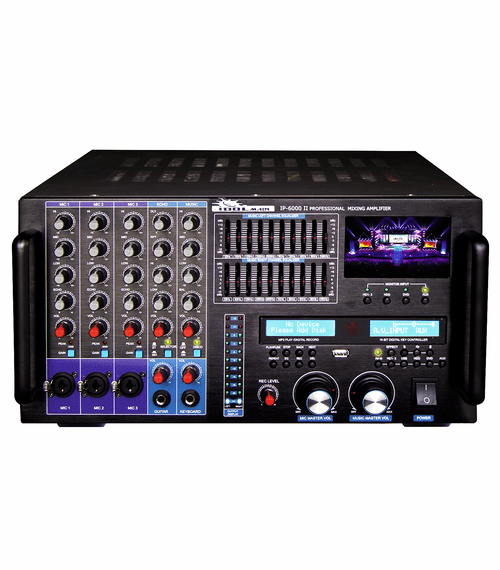

IDOLmain IP-6000 II 8000W Bluetooth/HDMI/Recording/LCD Screen/10 Band Equalizer Professional Console Mixing Amplifier Discontinued
Instruction to connecting smart devices to the amplifier through Bluetooth
1. Turn on Bluetooth on your phone
2. Press “Air-M” button on the front panel of the amp and wait for your phone to search.
3. Choose “F-3089” on your phone and connect it.
4. Now you are ready to stream music from your phone to the amp. Please note, Bluetooth will only send audio to the amp, graphic won’t get transferred,
Features:
- 4000W + 4000W Watts Max Power Output @ 8ohm
- Built-in MP3 Player Module
- Recording function
- Recording level
- LCD Monitor Control Station
- Audio Bluetooth receiver built-in for streaming from smart devices
- Head Phone input
- Sound Effect
- 4 Audio/Video Inputs: DVD/AUX/HDD/USB Module
- 3 Video HDMI Inputs: DVD/AUX/BGM
- 1 HDMI Output
- 1 RCA Audio/Video Output
- USB Port Input)
- L/R Multiplex Channel Output Selector
- Music Low, Mid, High, Balance, Volume Controls
- Microphone Delay, Repeat, Echo, Low, High Volume Controls<
- Microphone Volume Controls for Low, Mid, High, Echo, Balance, Volume for individual microphones
- 5 Front 1/4" Microphone Inputs, 1 Guitar Input & 1 Piano Input
- Master Microphone Control
- Master Volume Control
- 4 Audio Outputs (Record Out, Line Out, Subwoofer Out (Music/ Mixing), Mic Out (High/Low)
- 4 Banana Plug Speaker Connectors
- 2 Speakeron
- Sub-woofer XLR
- 115/230 Voltage for Worldwide Compatible
- Built-in BBE Sonic Maximizer for both vocal and music
- DSP Digital Sound Processor
- Temperature-Active, Ultra-Low-Noise Fan for non-stop operation
- Pre-Input and Pre-Output for External Effort
- 110W AC Power Outlet
Specification:
- Maximum Output: 4000W + 4000W Max
- Microphone Input Sensitivity: <20mV
- Music Input Sensitivity: 250mV / 47K Ohms / 1kHz
- Microphone Frequency Response: 20Hz - 20 kHz / 3dB
- Music Frequency Response: 20Hz - 20 kHz / 3dB
- Microphone EQ characteristics: Treble: +/- 10dB (10kHz), Bass: +/- 10dB (100Hz)
- Music EQ 10 Channel characteristics: Treble: +/- 10dB (10kHz), Bass: +/- 10dB (100Hz)
- Key Control Range +/- 6 Half Tones
- Speaker Wattage Impedance: 4 Ohm - 8 Ohm
- Voltage: AC 115V - 230V Manual Select
- Dimensions: 17"(W) x 8.5"(H) x 14"(D)
- Weight: 55 lbs.
- 1 Year Manufacturer Warranty
Unit Includes:
- Full Functions Remote Control
- Operating Manual Book
- Power Cord
- Rack Mount Kit
